Overview: What Makes This Microscope Stand Out

The Bresser Researcher LCD microscope delivers integrated digital zoom magnification through a built-in screen, removing the need for external monitors or laptop connections during routine inspection work. That's the short version. The longer story involves some genuinely useful optical engineering that I've come to appreciate over several months of bench use.

I'll be honest — when I first pulled this unit from its box, my expectations were moderate. I've used plenty of digital microscopes that promise the earth and deliver something closer to a webcam strapped to a stand. This one's different.

The Bresser Researcher LCD model sits in a price bracket around £164–£200 depending on the supplier and configuration, which positions it squarely between hobbyist USB microscopes and full laboratory compound instruments costing £500+. For UK labs running quality control checks, PCB inspection, or biological sample screening, that's a sweet spot worth examining closely.

What caught my attention this spring was how many UK electronics repair shops and small QC departments have started adopting these LCD-integrated microscopes. The shift away from eyepiece-only instruments isn't just about comfort — it's about documentation, traceability, and meeting the kind of inspection standards that BSI (British Standards Institution) quality frameworks increasingly demand.

Bresser Researcher LCD Microscope Digital Zoom Magnification: The Numbers

The digital zoom system operates in stages, and understanding these stages matters for getting accurate, usable results rather than just bigger blurry images.

Optical vs Digital Magnification Breakdown

Base optical magnification on the Researcher LCD typically ranges from 20x to 200x through objective lens selection. The digital zoom then multiplies this by up to 4x, giving a theoretical maximum around 800x on screen. But here's the thing — usable magnification and maximum magnification aren't the same number. Not even close.

In my experience, you'll get genuinely sharp, inspection-grade imagery up to about 500x combined magnification. Beyond that, you're interpolating pixels. Still useful for rough positioning, but I wouldn't sign off a QC report based on a 700x digital zoom image.

Resolution at Each Zoom Level

The sensor — typically a 5MP CMOS unit — captures at 2592 × 1944 pixels natively. At 1x digital zoom, every pixel maps directly. At 2x digital zoom, you're viewing a cropped and upscaled portion. The practical resolution limit sits around 1.5 micrometres at maximum optical magnification, degrading to approximately 3–4 micrometres when digital zoom is pushed past 3x.

So what's the catch? Well, actually, for most industrial inspection tasks in UK manufacturing — checking solder paste deposits, examining surface finishes, verifying component placement — 3 micrometres is perfectly adequate. You'd only need sub-micrometre resolution for semiconductor-level work, and that's a different instrument class entirely.

LCD Display Performance Under Lab Conditions

The integrated screen changes how you work. Completely.

Rather than hunching over eyepieces for hours — something that causes real neck strain issues, as HSE workplace ergonomics guidance has flagged repeatedly — you're viewing a screen at a comfortable angle. For technicians doing 6–8 hour shifts on inspection lines, that's not a luxury. It's a necessity.

Screen Specifications and Viewing Angles

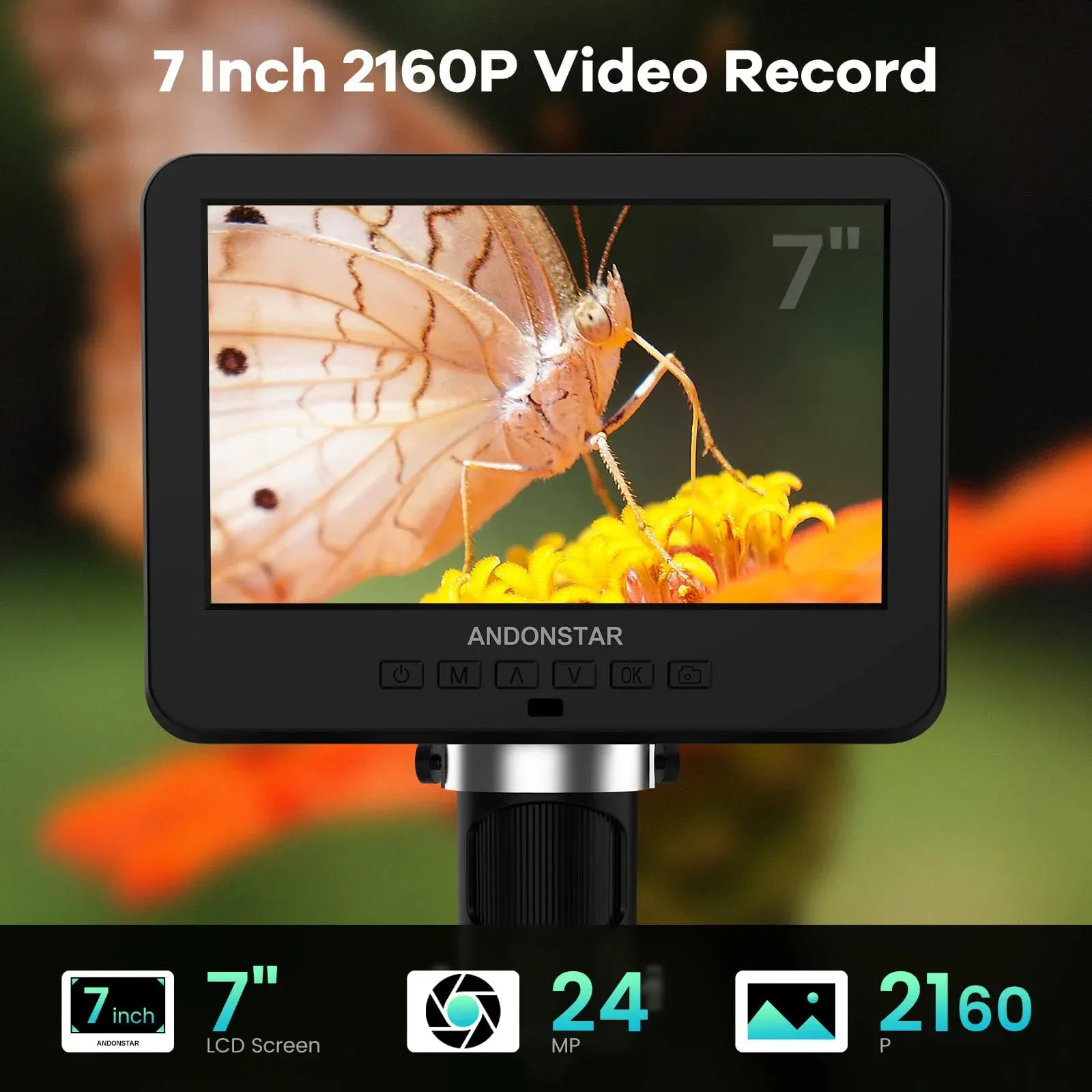

The LCD panel runs at 1024 × 600 resolution on the 7-inch models, with 178-degree viewing angles. Brightness peaks around 300–350 cd/m², which handles typical lab lighting without washout. I've used it under both fluorescent strip lighting and LED panels without needing to shade the screen.

Colour accuracy sits at roughly 72% sRGB coverage. That's decent for morphological inspection but won't satisfy anyone doing precise colour-matching work. For that, you'd want the USB output feeding a calibrated external monitor — worth knowing before you commit.

Refresh Rate and Live Viewing

Live preview runs at 30fps at full resolution, dropping to about 15fps when recording simultaneously. There's a barely perceptible lag — maybe 80–120 milliseconds — between moving the stage and seeing the image update. For static inspection it's irrelevant. For tracking moving specimens under biological examination, it's noticeable but workable., a favourite among Britain’s tradespeople

Industrial Inspection Applications in UK Settings

The Bresser Researcher LCD digital microscope with its zoom magnification range finds its strongest use cases in three UK sectors I've seen firsthand: electronics manufacturing, materials testing, and educational research labs.

Electronics and PCB Inspection

At 100x–200x magnification, solder joint inspection becomes straightforward. You can identify cold joints, bridging, insufficient wetting, and tombstoning without any ambiguity. The digital zoom to 400x lets you examine individual BGA ball connections on modern smartphone boards — exactly the kind of work that's grown massively across UK repair centres since Right to Repair legislation gained traction.

My mate who runs a repair shop in East Belfast swears by this type of setup for diagnosing board-level faults on MacBooks. He reckons it paid for itself within the first fortnight. I get why.

Quality Control and Materials Analysis

For surface roughness assessment, coating thickness verification, and weld inspection, the 20x–100x range with good LED illumination covers most requirements. UK manufacturing facilities working to ISO 9001:2015 quality management standards need documented evidence of inspection — the built-in SD card capture handles that without fuss.

Image files save as JPEG at full sensor resolution with timestamps. Not perfect for audit trails (you'd want RAW capability for that), but sufficient for most internal QC documentation I've encountered across small-to-medium UK manufacturers.

Educational and Research Use

Universities and FE colleges across the UK have been adopting LCD microscopes at pace through 2025 and into 2026. The reason's obvious: one instrument, visible to an entire bench group simultaneously. No more queuing for eyepiece time. At £164.15 per unit, equipping a teaching lab with 10 stations costs under £1,650 — roughly what a single research-grade compound microscope runs.

For biological specimens at the higher magnification ranges, you can resolve individual plant cells, blood smear morphology, and bacterial colonies (though not individual bacteria — you'd need oil immersion objectives and 1000x+ for that). Check out our full range of laboratory and inspection equipment for instruments covering different magnification requirements.

How It Compares: Bresser vs Competing Digital Microscopes

The Bresser Researcher LCD microscope's digital zoom magnification capabilities need context. Here's how it stacks up against the main alternatives available to UK buyers in June 2026:

Worth the extra spend over the Levenhuk? Absolutely, if you need true optical magnification rather than pure digital interpolation. The Levenhuk DTX 500 Mobi is brilliant for portability but it's essentially a high-end digital camera with a macro lens — no compound optical path means resolution hits a wall much sooner.

The AmScope offers a mechanical stage and Full HD output, which matters for systematic biological scanning. At nearly double the price, though, it's harder to justify for general industrial inspection where you're examining discrete components rather than scanning slides. If you're weighing options for your specific application, browse our curated selection of inspection tools for guidance matched to UK industry requirements.

Setup, Calibration, and Daily Use

Getting the Bresser Researcher LCD microscope running takes about 15 minutes out of the box. That includes fitting objectives, adjusting the display angle, and running through the initial focus calibration.

Calibration for Accurate Measurement

If you're using the on-screen measurement tools — and you should be, they're genuinely useful — calibration against a stage micrometer is essential. The process involves:

1. Place a calibration slide (0.01mm divisions) on the stage
2. Focus at each objective magnification level
3. Use the software calibration function to map pixel distance to physical distance
4. Verify by measuring a known feature — accuracy should be within ±2% at 100x

I'd recommend recalibrating monthly, or whenever you change the display zoom setting. The digital zoom affects the pixel-to-micrometre ratio, and the software doesn't always auto-compensate correctly. That said, once calibrated, measurement repeatability is solid — I've seen ±1.5% consistency across repeated measurements of the same feature.

Illumination and Image Quality Tips

The LED ring illumination works well for opaque samples (reflected light). For transmitted light work with thin sections or biological slides, you'll want the sub-stage illuminator at moderate intensity — cranking it to maximum washes out contrast on unstained specimens., popular across England

One trick I've found: for highly reflective surfaces like polished metal or silicon wafers, angle the ring LEDs by using only the partial-ring illumination mode. Kills specular reflections dead and reveals surface topology that flat lighting completely hides. Spot on for scratch detection on machined surfaces.

Data Management

Images save to SD card in JPEG format. Video captures at 1080p or 720p depending on model variant. File naming is timestamp-based, which is fine for small volumes but becomes unwieldy past a few hundred images. A folder structure by date and project on the SD card works well — the microscope doesn't enforce any organisation, so you'll need discipline here.

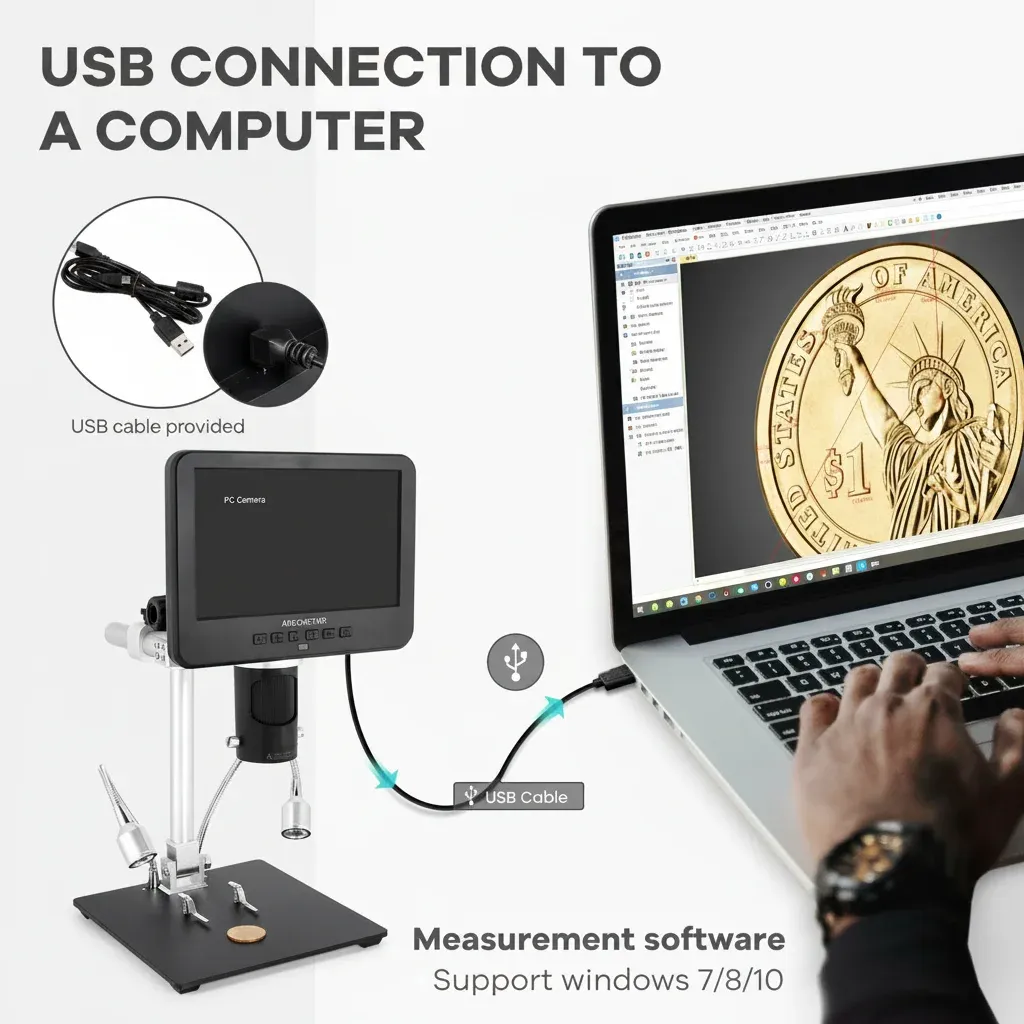

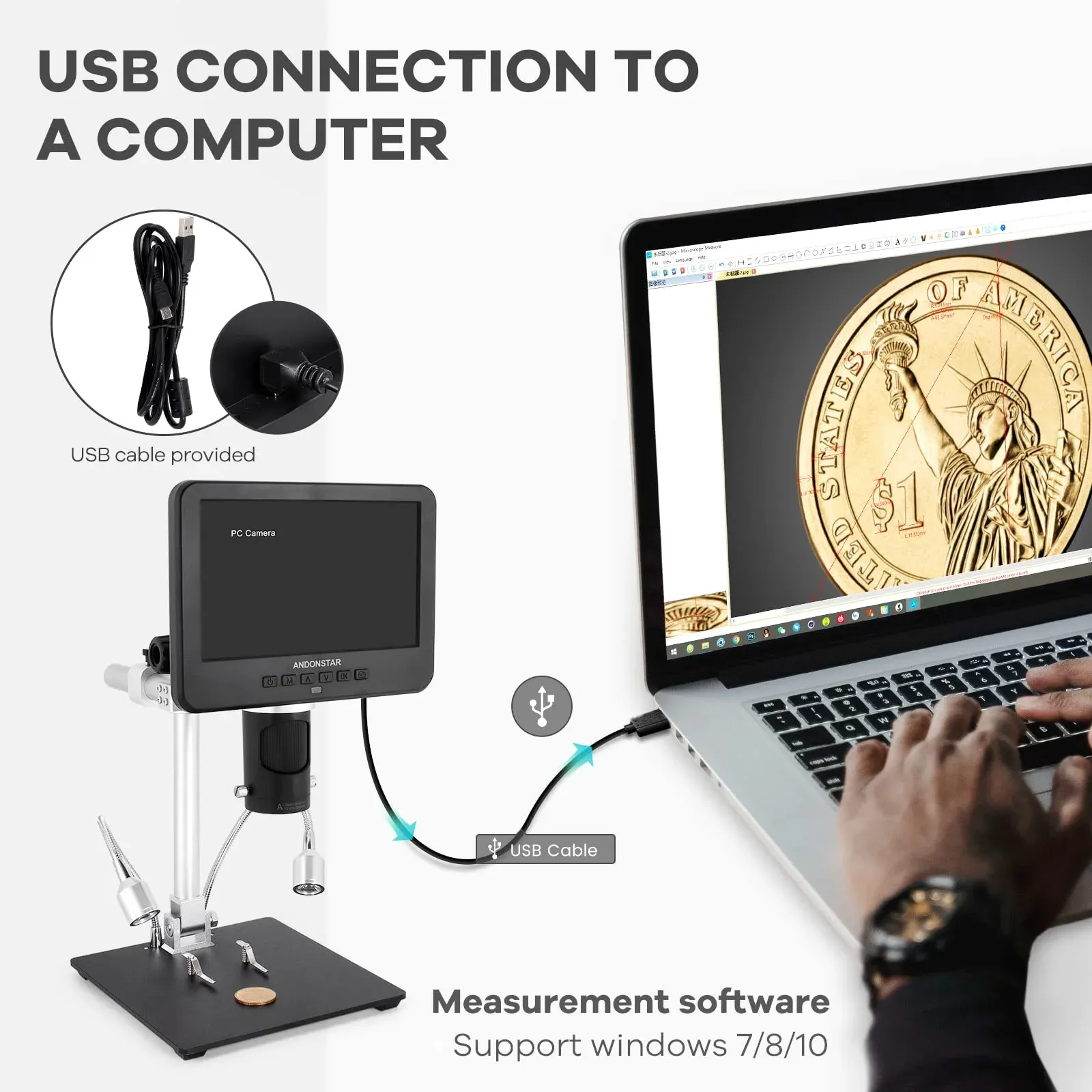

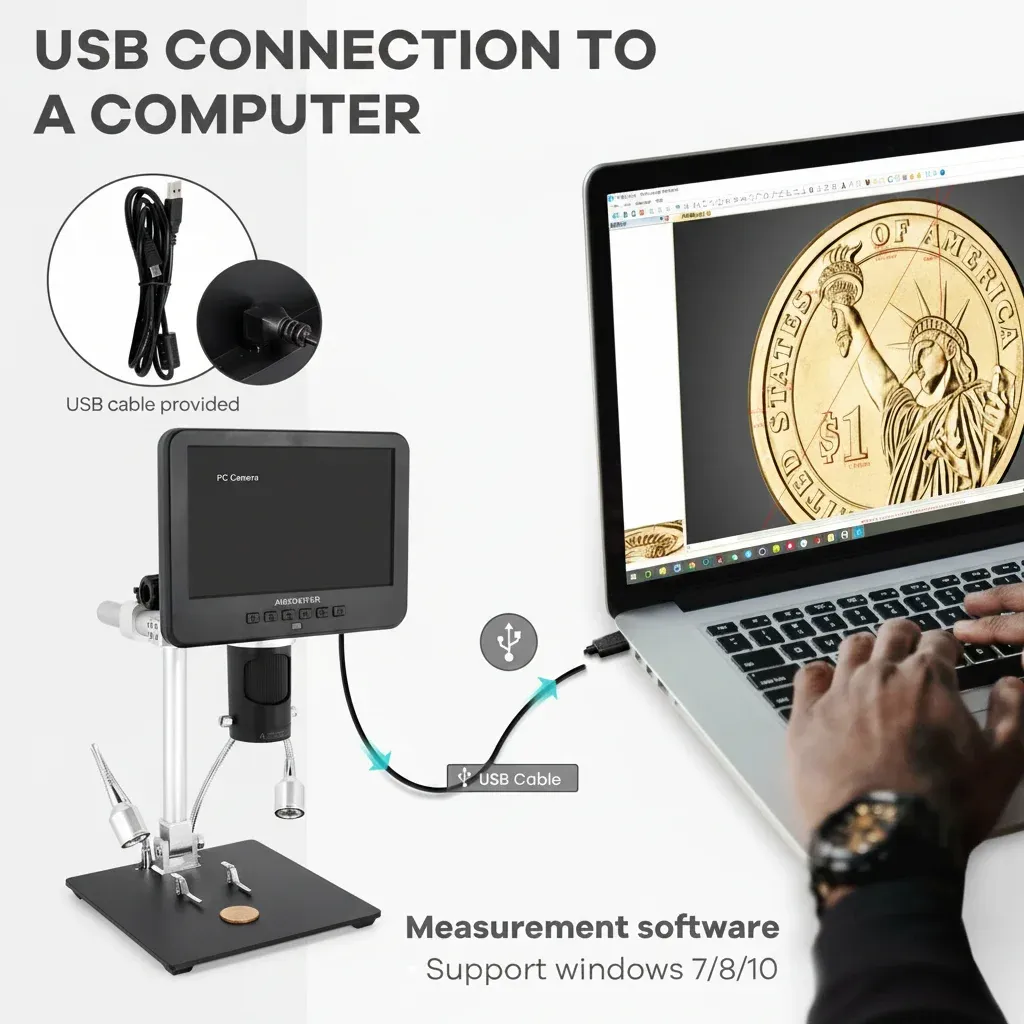

For labs needing full traceability, the USB output to a PC running dedicated capture software gives you better metadata control, TIFF format options, and integration with LIMS (Laboratory Information Management Systems). That's the route I'd recommend for any facility working under UK regulatory frameworks requiring documented inspection records.

Key Takeaways

• Practical magnification ceiling: The Bresser Researcher LCD microscope digital zoom magnification system delivers usable imagery up to 500x–600x, with optical base magnification to 200x and 4x digital zoom extension.
• Price positioning: At £164.15–£200, it undercuts comparable AmScope models by 40–50% while offering superior sensor resolution (5MP vs 2MP) for still image capture.
• Measurement accuracy: ±2% measurement precision after calibration, with ±1.5% repeatability — sufficient for most UK industrial QC requirements.
• Ergonomic advantage: The integrated 7-inch LCD eliminates eyepiece strain during extended inspection shifts, aligning with HSE workplace ergonomics recommendations.
• Documentation capability: Built-in SD card recording with timestamp provides basic audit trail functionality; USB output enables full LIMS integration for regulated environments.
• Best applications: Electronics repair, surface inspection, educational microscopy, and general QC work where magnification between 40x and 500x covers the requirement.
• Limitation to note: Not suitable for sub-micrometre work, oil immersion microscopy, or applications requiring colour-critical accuracy beyond 72% sRGB coverage.

Look, the Bresser Researcher LCD microscope digital zoom magnification package isn't going to replace a £2,000 research-grade instrument. It's not trying to. What it does — and does well — is bring accessible, documented digital microscopy to UK labs, workshops, and teaching environments at a price point that makes equipping multiple stations financially viable. For the work most of us actually do day-to-day, that's bang for your buck. Sorted.
